A touch paddle

 A super Touch paddle with extremely good emc performance.

It all started when my passion for QRQ cw increased and i do want to play with the "big" boys. Soon somebody told me that a paddle with spring returning was not good for more than 40 wpm.

I did have a qso with a very good qrq op Dick SP9DBA and he did mention that he know a schematic for a paddle he have used for many years.  The schematic look like the one from QST 2004 july made by W8nue, and modified by DJ5IL.

Dj5il tell a little about it here cq-cq.eu/DJ5IL_rt003.pdf‎

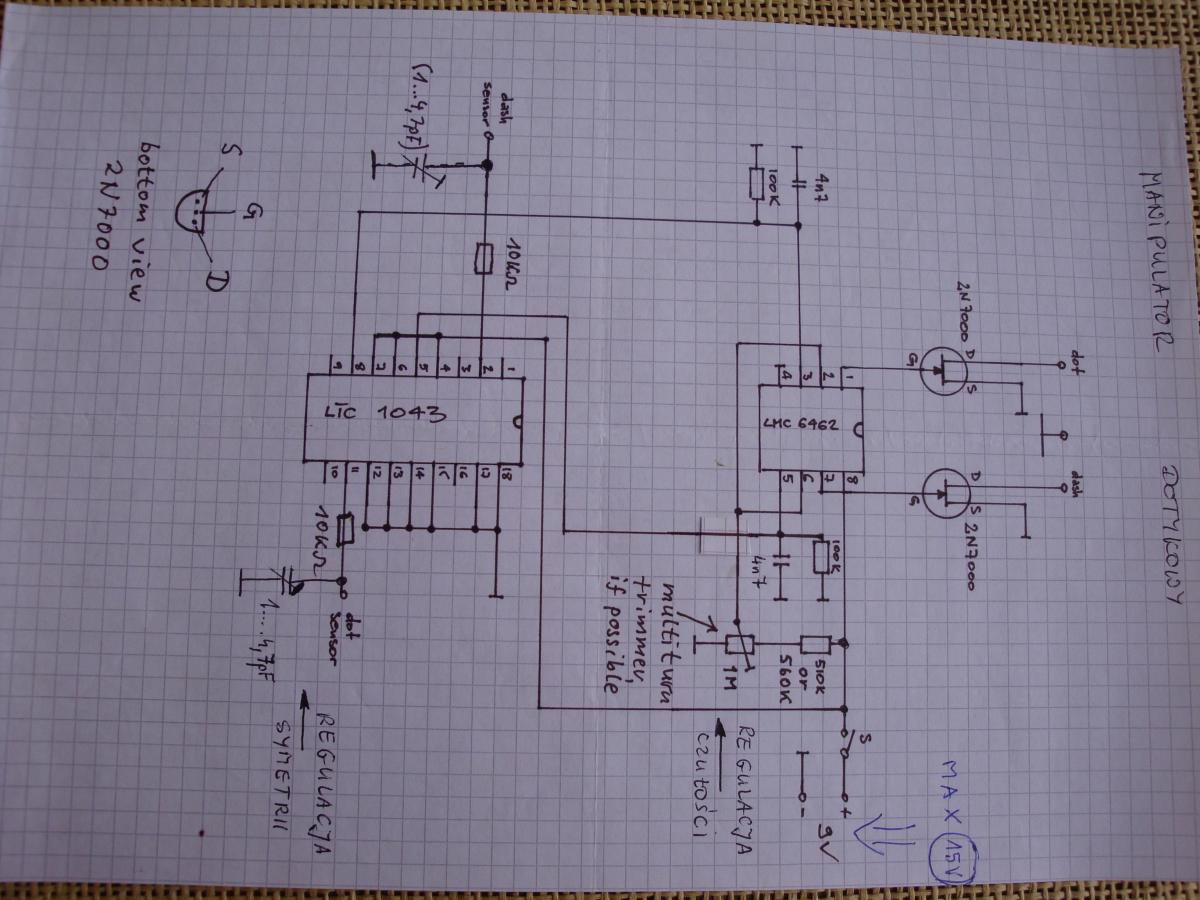

Here the layout i did recieve from dick SP9DBA



sites/default/files/Schemat.JPG

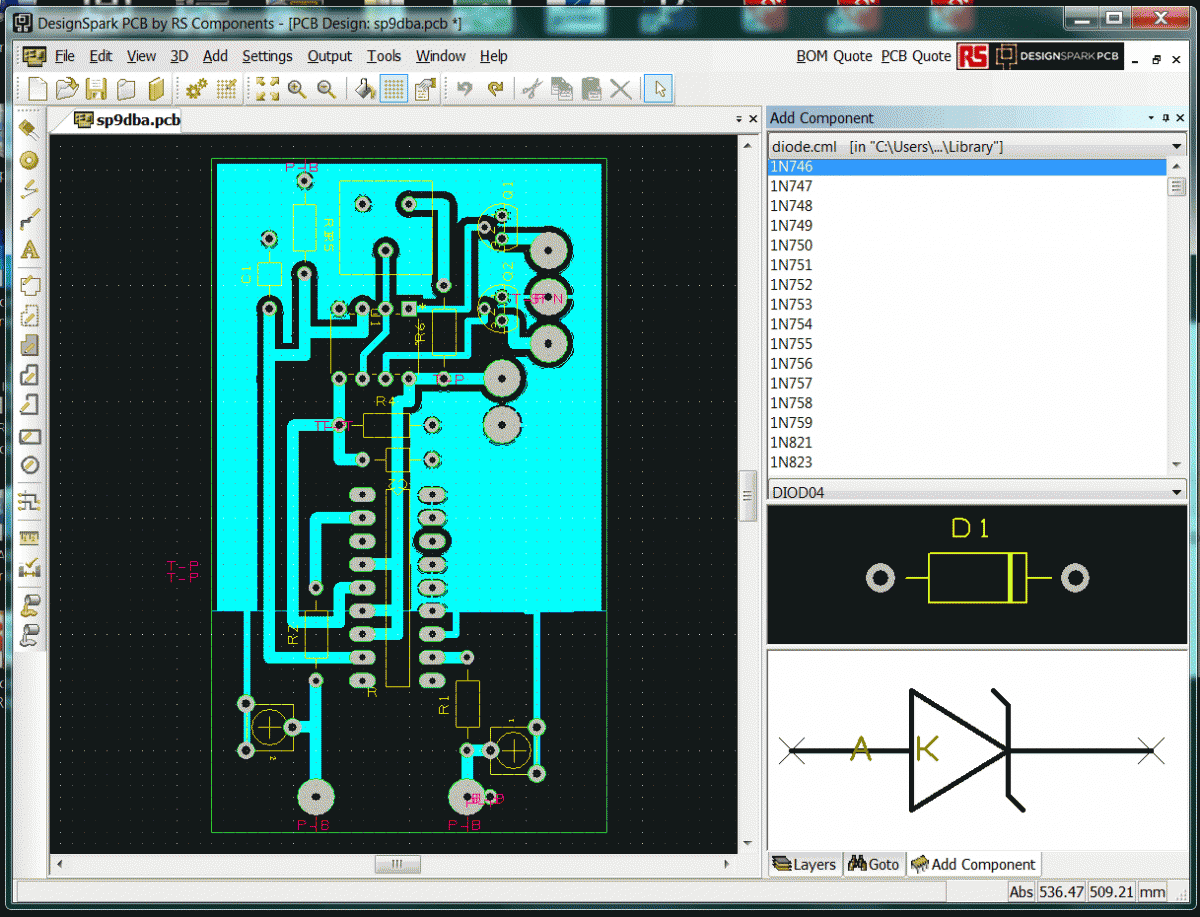

I did build it and one thing to be aware of is the wireing of the touch paddle themself to the board ...They have to be short and with a good distance to GND. No problems..it is very easy to build.

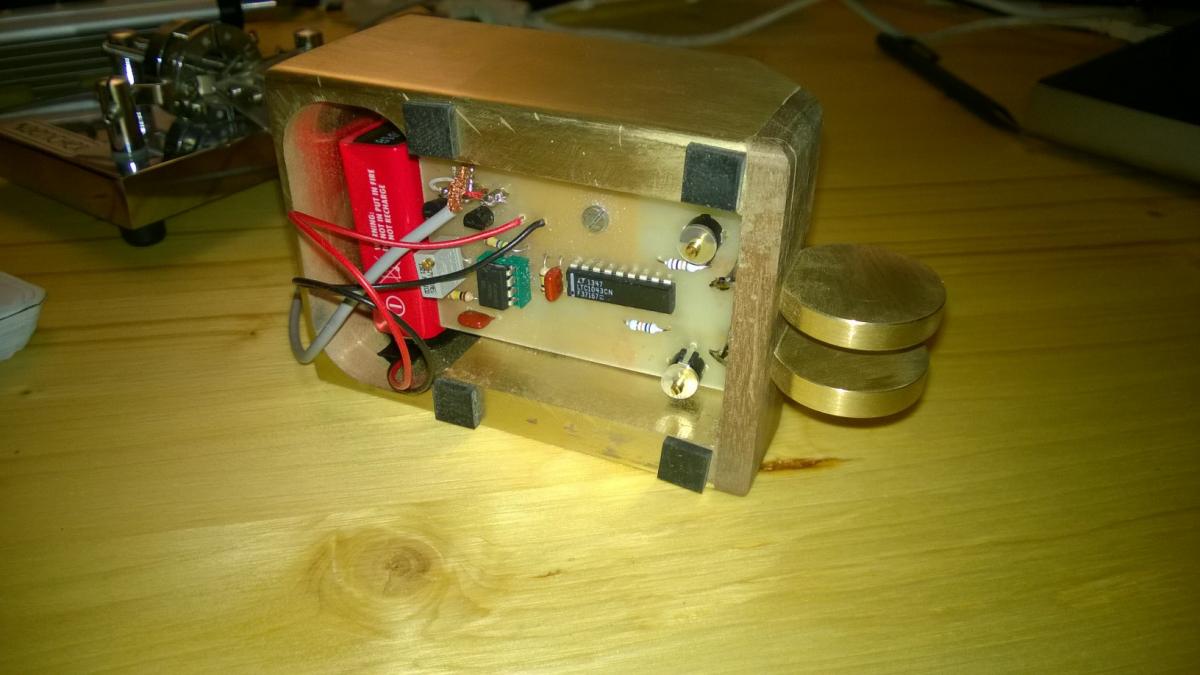

Here you can see a little video about it ...The brass enclosure are not finish but it works VERY well.
